Yeni bir alternatif; MS 290 4WD

 Mehmet ŞimşekerMS Traktör diğer bir deyişle Mehmet Şimşeker İstanbul'un 290 modelini kısaca yakından tanıyalım; araç 4x4 ve
 4x2 aktarma düzenlerinde iki model olarak imal ediliyor..

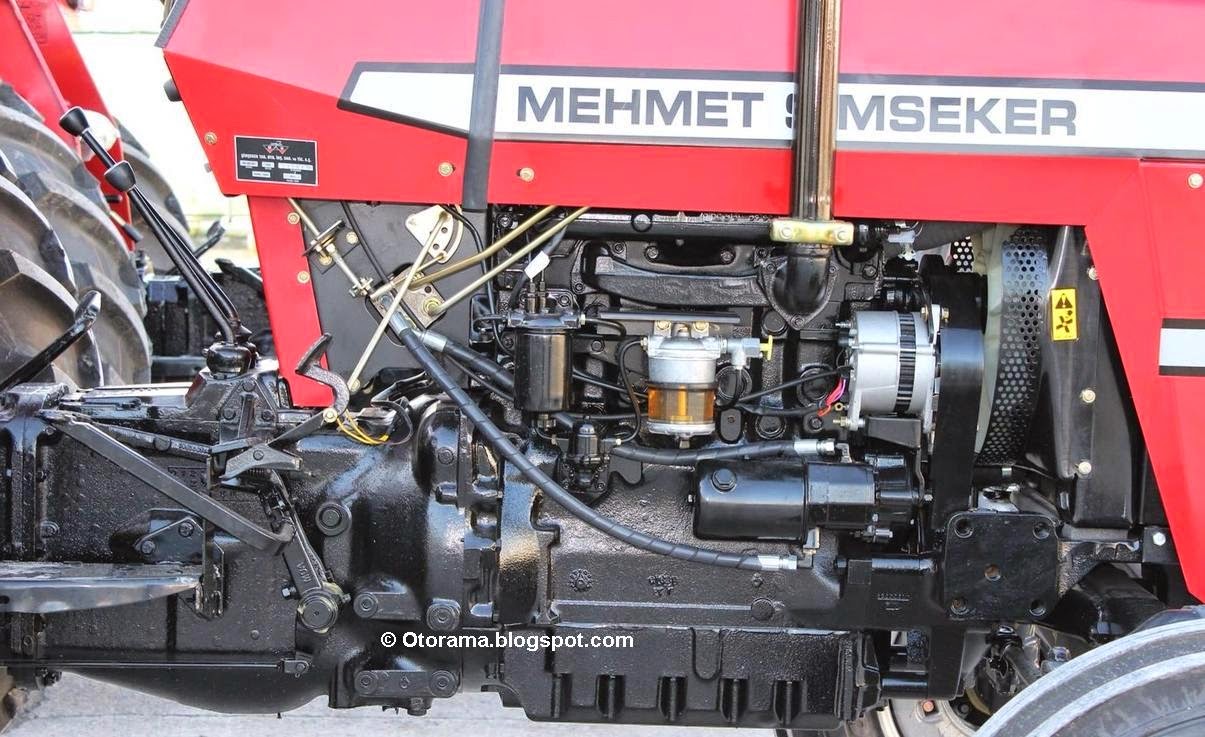

80 beygirlik  dizel motor 4 sillindirli olup 278 Nm torka sahip.
ilk traktör 4x4 özelliğindeki 290 4WD..Aracın imalatı Gebze'de yapılıyor..


PERFORMANCE :
Rated Engine Power @ 2000 rev/ min 80 hp
Max. Engine Torque @ 1300 rev/ min 278 Nm
Max. P.T.O power @ 540 rev / min 63.4
ENGINE :
Make / Type - A4/ 248
Number Of cylınders - 4
Injectıon - direct dıstrıbutor type
Bore - 101 mm
Stroke - 127 mm
Capacity - 4.06 lt.

Compression Ratio - 16 : 1
Starting Aid - Thermostat
Throttle Control - Hand and Foot
Cooling - Water
Air Cleaner - Oil Bath
Air-Precleaner - Centrifugal over bonnet
Fuel Filter - single, high capacity with prefilter
Exhaust - Vertical

ELECTRICS :
Voltage – 12 V. Negative Earth
Battery – 125 AH
Starter – 2.8 KW
Alternation – 45 Amp
Light – Head Lights , Side Lights , Brake Lights , Direction İndicator , Rear Plough Lamp
Other – Horn , 7 pin trailer socket
CLUTCH :
Type – Dual Clutch
Diameter – 305 mm
TRACK ADJUSTMENT :
Front – 1.57 m , 1.93 m
Rear – pressed - 1.43 m , 2.13 m
TRANSMISSION :
Type – Slide
10 speed – 8 Forward , 2 reverse
4 WD FRONT TAXLE :
Axle Type – Parallel Drive
Engagement – Mechanical
Differential – Automatic
Max , Turning Angel – 55

HYDRAULICS :
Linkage Pump – Standard Flow
Max Oil Flow – 16.7 litre / min
Max Pressure – 214 bar
Three Point Linkage – cat.2
Functions – Draft , (too link sensing) , Possion Control , Response Control
Max Lift Capacity at link
Ends, and links horizontal 2227 kg.
REAR AXLE AND BRAKES :
Braketype – Oil Immersed , 5- plate disc each side
Actuation – Mechanical Indepent or locked together
Diameter – 222.4
Parking Brake – Hand Lever Operated
Differential Lock – Mechanical
WHEELS AND TYRES :
Front - 12.4 - 24 , 6 ply
Rear – 18.4 / 15 -30 , 6 ply
CAPACITIES :
Fuel Tank - 90 litre
Hidraulic System – 43 litre
Engine Sump – 8 litre
Cooling System – 14.2 litre
Streeing Box – 0.9 litre
Streeing Pump – 1.1 litre

VARIABLE EQUIPMENT :
Chain Stabilizers – Trailler Tipping Pipe Rear Wheel Weights
Quick – attach weights – 34 kg - Tool Box With Spanner Set
WEIGHTS AND DIMENSIONS :
With full fuel , oil and water , 12.4 – 24 front and 18.4 / 15-30 rear tyres and 1530 mm track setting
Weight
- Front 1420 kg
- Rear 1694 kg
- Total 3114 kg
Overal Length 3900 mm
Width 1829 mm
Height
- Over exhaust 2528 mm
- Over stg , wheel 1680 mm
- Wheel Base 2290 mm
Turning Circles
- (less brakes) 7600 mm
Ground Clearance
- Under Drawbar 381 mm

POWER TAKE OFF :
Type - 540 rev/min Live at 1684 rpm
Shaft Diameter - 35 mm
No. Of Spinles - 6
STREEING :
Type – Hydrostatic
OPTIONS :
Transmission (12+4) speed - Synchrovmesh
Sun Roof
Safety Frame
Spool Value
Cabin

MS 290 – 2 WD
PERFORMANCE :
Rated Engine Power @ 2000 rev/ min 80 hp
Max. Engine Torque @ 1300 rev/ min 278 Nm
Max. P.T.O power @ 540 rev / min 63.4
ENGINE :
Make / Type - A4/ 248
Number Of cylınders - 4
Injectıon – Direct Distributor Type
Bore - 101 mm
Stroke - 127 mm
Capacity - 4.06 lt.
Compression Ratio - 16 : 1
Starting Aid - Thermostat
Throttle Control - Hand and Foot
Cooling - Water
Air Cleaner - Oil Bath
Air-Precleaner - Centrifugal over bonnet
Fuel Consumption - At Idle Speed ( 7000 r.p.m.) 0.64 L / H At Max. Power (2060 r.p.m.) 15:45 L/H
Fuel Filter - single, high capacity with prefilter
Exhaust - Vertical

ELECTRICS :
Voltage – 12 V. Negative Earth
Battery – 125 AH
Starter – 2.8 KW
Alternation – 45 Amp
Light – Head Lights , Side Lights , Brake Lights , Direction İndicator , Rear Plough Lamp
Other – Horn , 7 pin trailer socket
CLUTCH :
Type – Dual Clutch
Diameter – 305 mm
TRACK ADJUSTMENT :
Front – 1.23 m , 1.84 m
Rear – pressed - 1.43 m , 2.13 m
TRANSMISSION :
Type – Slide
10 speed – 8 Forward , 2 reverse
REAR AXLE AND BRAKES :
Braketype – Oil Immersed , 5- plate disc each side
Actuation – Mechanical Indepent or locked together
Diameter – 222.4
Parking Brake – Hand Lever Operated
Differential Lock – Mechanical

WHEELS AND TYRES :
Front - 7.5 - 16 , 6 ply
Rear – 18.4 / 15 -30 , 6 ply
CAPACITIES :
Fuel Tank - 90 litre
Hidraulic System – 43 litre
Engine Sump – 8 litre
Cooling System – 14.2 litre
Streeing Box – 0.9 litre
Streeing Pump – 1.1 litre
VARIABLE EQUIPMENT :
Chain Stabilizers
Swinging Drawbar
Quick – Attach weights – 34 kg
Trailer Tipping Pipe

WEIGHTS AND DIMENSIONS :
With full fuel , oil and water , 7.5 – 16 front and 18.4 / 15-30 rear tyres and 1530 mm track setting
Weight
- Front 1118 kg
- Rear 1694 kg
- Total 2812 kg
Overal Length 4010 mm
Width 2060 mm
Height
- Over exhaust 2528 mm
- Over stg , wheel 1680 mm
- Wheel Base 2290 mm
POWER TAKE OFF :
Type - 540 rev/min Live at 1684 rpm
Shaft Diameter - 35 mm
No. Of Spinles - 6

HYDRAULICS :
Linkage Pump – Standart Flow
Max Oil Flow – 16.7 Litre / min
Max Pressure – 214 bar
Three Point Linkage – (top link sensing)
Functions – Posision Control , Response Control
Max Lift Capacity at Link ends,
And links horizontal - 2227 kg.
STEERING :
Type – Hydraulic Steering System
OPTIONS :
Transmission (12+4) speed - synchromesh
Spool Valve
Sun Roof
Hydromechanic
Safety Frame
Cabin
